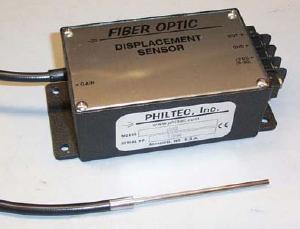

RC140, Analog Output Reflectance Compensated Fiberoptic Displacement Sensor
The RC140 transducers are based upon detecting the intensity of reflected light. These sensors are reflectance compensated so that measurements are independent of varying surface reflectance.
Features:
- Fiberoptic
- Reflectance Compensated Output
- 300 Stainless Steel Probe Tip
- Tip Outer Diameter: 7.925 mm
- Target Spot Size: 3.73 x 4.75 mm
- 0.9 m Fiberoptic Cable
- Available in 100 Hz, 20 kHz or 200 kHz Bandwidth
Manufacturer: Philtec
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
RC140 - Specifications
| Type | Fiberoptic |
| Full Scale | 10 mm |
| Output | 0 - 5 V DC |
| Non-Linearity | Non-Linear |
| Resolution | 0.0023 mm |
| Excitation | 12 - 24 V DC |
| Min Temperature | -55 °C |
| Max Temperature | 175 °C |
RC140 - Models & Accessories
Models
| RC140-DC-100Hz | 100 Hz Bandwidth |
| RC140-DC-20kHz | 20 kHz Bandwidth |
| RC140-DC-200kHz | 200 kHz Bandwidth |
RC140 - Downloads
RC140 Reflectance Compensated Fiberoptic Displacement Sensor Datasheet |
Fiberoptics For High Magnetic Fields App Note |
RadHard, Radiation Resistant Sensors App Note |
Curved Glass Measurement Solution App Note |
Type D Sensor Applications With Tilt App Note |
Cryogenic Lens Holders App Note |
