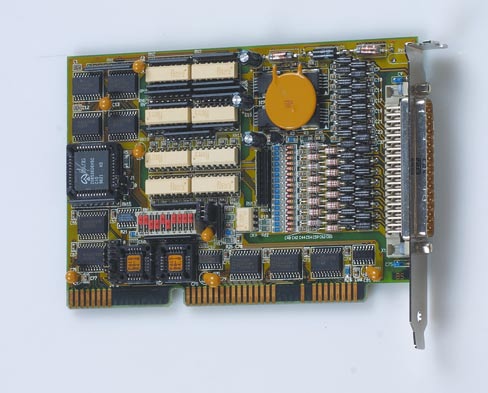

PA1500, Digital I/O Board for ISA
The PA1500 board features optical isolation, creeping distance, protection against fast transients, overvoltage, electrostatic discharge and EMI. The board has separate ground lines for the inputs and the outputs and shut-down logic.
Features:
- Digital I/O Board for ISA
- 16 Digital Inputs, 24 V, Including 14 Interruptible Inputs
- 16 Digital Outputs, 24 V, 500 mA/channel
- Optical Isolation 1000 V
- Input & Output Filter
- Watchdog
- Output Resets to 0 at Power-On
- Timer
Manufacturer: ADDI-DATA GmbH
Quote
Datasheet
Specifications
Downloads
Similar Products
PA1500 - Specifications
| Borad Type | ISA |
| Input Type | Digital |
| Digital Inputs | 16 |
| Digital Outputs | 16 |
PA1500 - Downloads
PA1500 Digital I/O Board for ISA Datasheet |
