APCI-3200, Temperature Measurement Board for PCI
The APCI-3200 temperature measurement board features optical isolation, creeping distance, overvoltage protection and protection against high-frequency EMI.
Features:
- Temperature Measurement Board for PCI
- PCI 3.3 V or PCI 5 V
- Up to 16 Channels for Thermocouples or 8 Inputs for RTD
- Inputs for Thermocouple Types: J, K , T, E, R, S, B, N
- Mixed Configuration of the Channels
- 18-bit Resolution
- Optical Isolation 1000 V
- Cold Junction Compensation on Screw Terminal Panel PX3200
- Software Linearization
Manufacturer: ADDI-DATA GmbH
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
APCI-3200 - Specifications
| Borad Type | PCI |
| Input Type | Voltage |
| Thermocouple/RTD | |
| Digital | |
| Analog Inputs | 4 |
| 8 | |
| 16 | |
| Digital Inputs | 4 |
| Digital Outputs | 3 |
APCI-3200 - Models & Accessories
Models
| APCI-3200-16 | 16 Analog Inputs; Thermocouple, RTD, SE or Differential |
| APCI-3200-8 | 8 Analog Inputs; Thermocouple, RTD, SE or Differential |
| APCI-3200-4 | 4 Analog Inputs; Thermocouple, RTD, SE or Differential |
APCI-3200 - Downloads
APCI-3200 Temperature Measurement Board for PCI Datasheet |
APCI-3200 - Similar Products
- Analog Input Board for PCI
- PCI 3.3 V or PCI 5 V
- Optical Isolation 1000 V
- 16/8/4 Single-Ended or 8/4/2 Differential Inputs
- 12- or 16-bit Resolution, 200 kHz
- PCI DMA, Programmable Gain
- Trigger Functions
- Timer, Counter, Watchdog
| Borad Type | PCI |
| Input Type | Voltage, Current, Digital |
| Analog Inputs | 4, 8, 16 |
| Digital Inputs | 4 |
| Digital Outputs | 4 |
- Analog Input Board for PCI
- 16/8/4 Single-Ended or 8/4 Differential Inputs
- 12-bit Resolution
- Optical Isolation 500 V
- 100 kHz Throughput
- PCI DMA, Programmable Gain
- 8 Digital I/O, 24 v, Optically Isolated, Timer
- Trigger Functions
| Borad Type | PCI |
| Input Type | Voltage, Current, Digital |
| Analog Inputs | 4, 8, 16 |
| Digital Inputs | 4 |
| Digital Outputs | 4 |

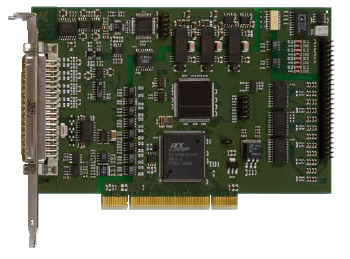

- Multifunction Board for PCI
- PCI 3.3 V or PCI 5 V
- Optical Isolation 1000 V
- 16/8 Single-Ended or 8/4 Differential Inputs
- 12- or 16-bit Resolution, 200 kHz
- PCI DMA, Programmable Gain
- 4 Analog Outputs, 12-bit
- Timer, Counter, Watchdog
| Borad Type | PCI |
| Input Type | Voltage, Current, Digital |
| Analog Inputs | 8, 16 |
| Digital Inputs | 4 |
| Analog Outputs | 4 |
| Digital Outputs | 4 |

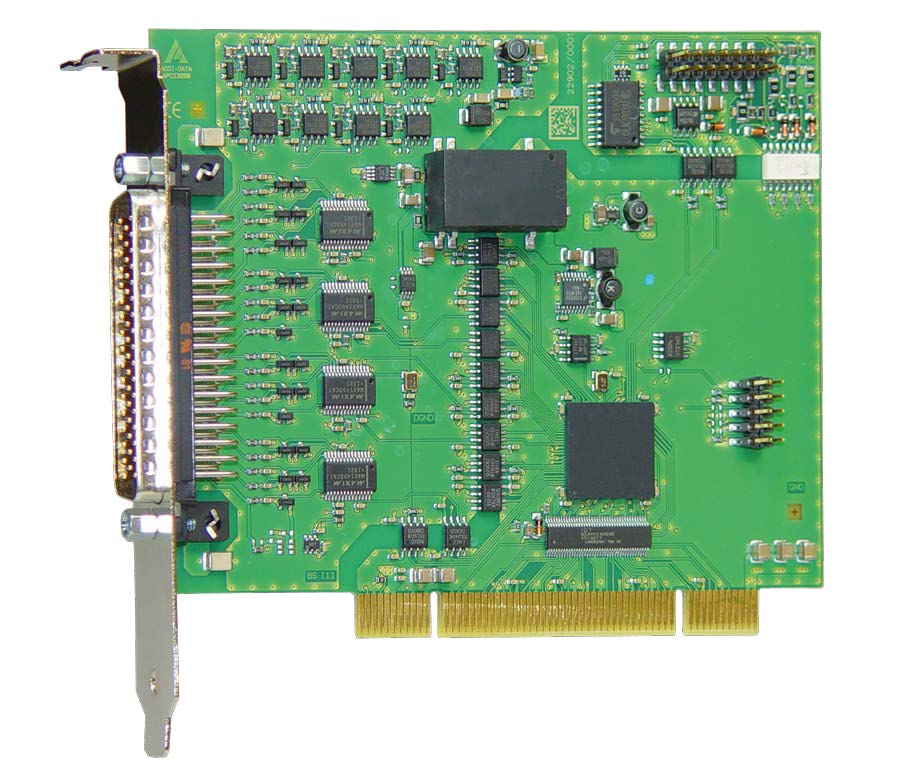

- Pressure Measurement Board for PCI
- PCI 3.3 V or PCI 5 V
- Up to 8 Channels for Strain Gauges
- Up to 8 Onboard Voltage Sources
- 18-bit Resolution
- Optical Isolation 1000 V
- Software Linearization
- Direct Connection of Pressure Sensor to PX3200-G Screw Terminal Panel
| Borad Type | PCI |
| Input Type | Voltage, Strain Gauge, Digital |
| Analog Inputs | 4, 8 |
| Digital Inputs | 4 |
| Digital Outputs | 3 |
- -Multifunction Board for PCI
- 16 Single-Ended/8 Differential Inputs, 16-bit
- 8/4 Analog Outputs, 14-bit
- Optical Isolation of Inputs & Outputs, 500 V
- PCI DMA, Programmable Gain
- Trigger Functions
- 8 Digital I/O, 24 V, Optically Isolated, Timer
- On-Site Calibration with the CAL3120 option
| Borad Type | PCI |
| Input Type | Voltage, Current, Digital |
| Analog Inputs | 8, 16 |
| Digital Inputs | 4 |
| Analog Outputs | 4, 8 |
| Digital Outputs | 4 |
