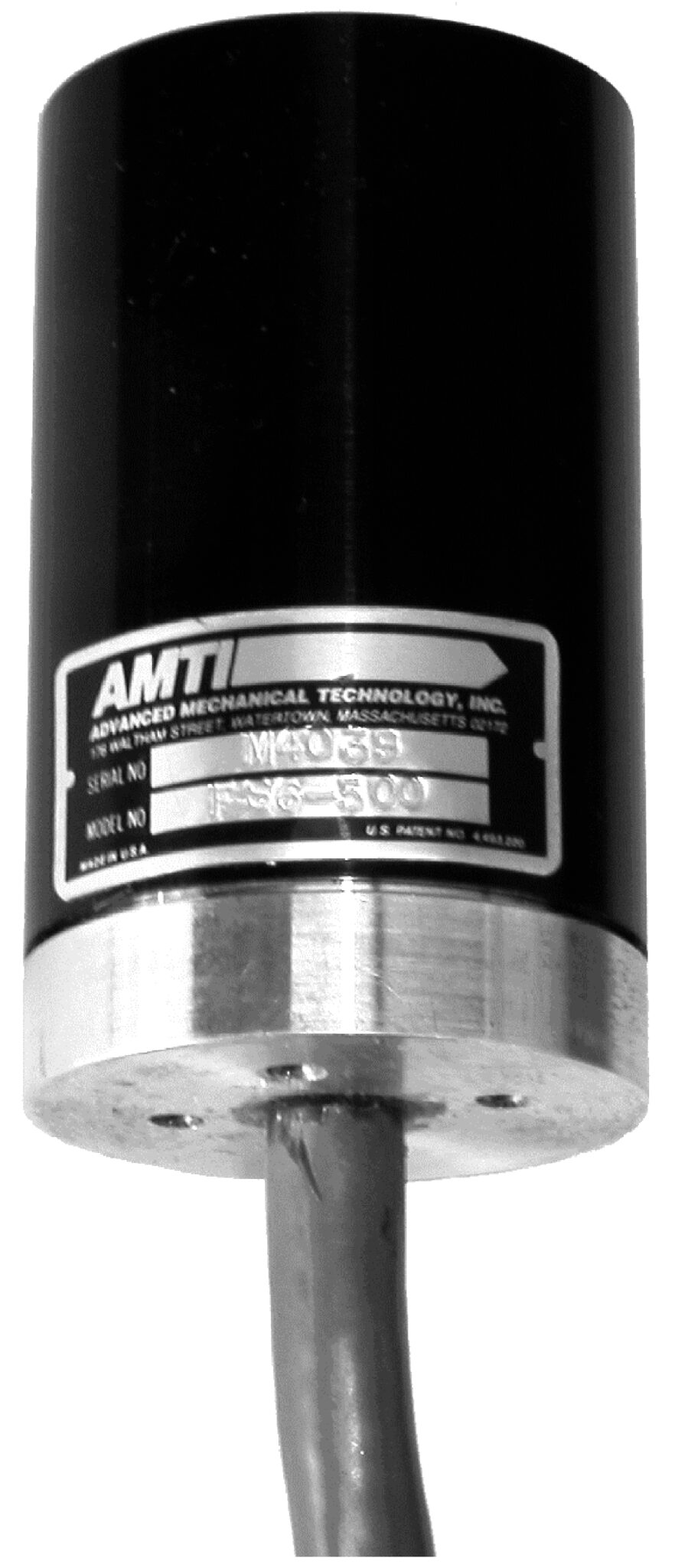

SP1D, Force/Torque Sensor
The SP1D, formaly known as the MC1, is a compact and waterproof six-axis sensor that is well-suited for applications such as underwater models and tow tanks. The body of the load cell is manufactured from heat treated 17-4 PH stainless steel,...
Features:
- Compact and waterproof six-axis sensor
- Body of the load cell is manufactured from heat treated 17-4 PH stainless steel
Manufacturer: Advanced Mechanical Technology Inc. (AMTI)
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
SP1D - Description
The SP1D, formaly known as the MC1, is a compact and waterproof six-axis sensor that is well-suited for applications such as underwater models and tow tanks. The body of the load cell is manufactured from heat treated 17-4 PH stainless steel, has mounting surfaces equipped with threaded holes, and features an integral, axial-exit cable.
SP1D - Specifications
| Channels | 6 (Fx, Fy, Fz, Mx, My, Mz) |
| Full Scale (Fz) | 250 lbs |
| 500 lbs | |
| Non-Linearity | ± 0.2 % FS |
| Dimensions | 82.55 x 25.4 mm |
| Body Material | Stainless Steel |
| Min Temperature | -18 °C |
| Max Temperature | 52 °C |
SP1D - Applications
The SP1D force/torque sensor is AMTI's smallest multi-component sensor and is particularly suitable for underwater applications requiring simultaneous measurement of several forces and moments. Common applications for this transducer include research and development with underwater models, tow tanks, robotics, testing machines, and biomechanics.
SP1D - Models & Accessories
Models
| SP1D-250 | Fz Range: 250 lbs |
| SP1D-500 | Fz Range: 500 lbs |
SP1D - Downloads
SP1D-250 Compact Waterproof, Six-Axis sensor Datasheet |
SP1D-500 Compact Waterproof, Six-Axis Sensor Datasheet |
