PRDS3, Magnetic Incremental Rotary Displacement Encoder
The PRDS3 incremental rotary encoder is made of aluminum and is built to operate for as many as 100 x 10^6 revolutions.
Features:
- Incremental Angle Encoder
- RS422 or HTL Output
- Bi-Directional
- Aluminum Housing
- Aluminum Shaft
- 10 mm Shaft or 6 mm Hollow Shaft
- Connection: 2m Integral Cable or 8-pin M12 Socket
- Long Lifetime
Manufacturer: ASM Sensors, Gmbh
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
PRDS3 - Specifications
| Type | Encoder |
| Non-Contact | |
| Full Scale | Continuous |
| Max Speed | 10000 RPM |
| Output | Quadrature TTL |
| Quadrature HTL | |
| Resolution | 0.36° |
| 1.40° | |
| Excitation | 5 V DC |
| 10 - 36 V DC | |
| 18 - 36 V DC | |
| IP Rating | IP67 |
| IP69 | |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
PRDS3 - Models & Accessories
Models
| PRDS3-RS | RS-422 Interface |
| PRDS3-HT | HTL Interface |
PRDS3 - Downloads
PRDS3 Magnetic Angle Encoder with Incremental Outp Datasheet |
PRDS3 - Similar Products
- Seawater Proof Incremental Angle Sensor
- RS422 or HTL Output
- Stainless Steel Housing
- Stainless Steel Shaft
- 10 mm Shaft or 6 mm Hollow Shaft
- Connection: 8-pin M12 Socket
- Protection Class IP68 (Option)
| Type | Encoder, Non-Contact |
| Full Scale | Continuous |
| Max Speed | 10000 RPM |
| Output | Quadrature TTL, Quadrature HTL |
| Resolution | 0.36°, 1.40° |
| Excitation | 5 V DC, 10 - 36 V DC, 18 - 36 V DC |
- Contactless Incremental Angle Encoder
- RS422 or HTL Output
- Bi-Directional
- Aluminum Housing
- Connection: 2m Integral Cable or 8-pin M12 Socket
- Wear-Free
| Type | Encoder, Non-Contact |
| Full Scale | Continuous |
| Max Speed | 30000 RPM |
| Output | Quadrature TTL, Quadrature HTL |
| Resolution | 0.36°, 1.40° |
| Excitation | 5 V DC, 10 - 36 V DC, 18 - 36 V DC |

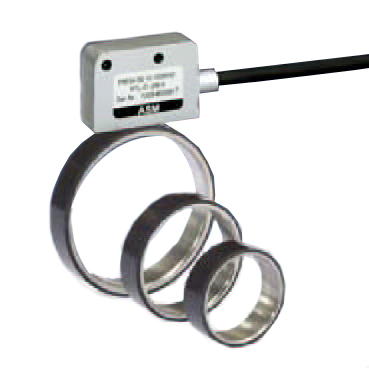

- PMIS4 Sensor Head & PMIR7/7N Magnetic Rings
- Digital Output
- Bi-Directional
- Zinc Die Cast Housing
- Elastomer Bonded Hard Ferrite Magnetic Scale
- Inner Diameter: 20 mm, 27 mm, 35 mm, 50 mm
- Connection: Up to 20m Integral Cable
- Highest EMC Protection
| Type | Encoder, Non-Contact |
| Full Scale | Continuous |
| Max Speed | 6000 RPM |
| Output | Quadrature TTL, Quadrature HTL |
| Resolution | 0.1° |
| Excitation | 5 V DC, 10 - 30 V DC |
- Contactless Incremental Angle Encoder
- RS422 or HTL Output
- Bi-Directional
- Stainless Steel Housing
- Connection: 8-pin M12 Socket
- Wear-Free
| Type | Encoder, Non-Contact |
| Full Scale | Continuous |
| Max Speed | 30000 RPM |
| Output | Quadrature TTL, Quadrature HTL |
| Resolution | 0.36° |
| Excitation | 5 V DC, 10 - 36 V DC, 18 - 36 V DC |
- Contactless Transmissive Rotary Sensor
- Analog, SSI, SPI or Incremental Output
- Temperature Resistant Plastic Housing
- Connection: Integral Cable or M12 Connector
- Other Connections Available
- Unlimited Mechanical Lifetime
- Redundant Analog Output (Option)
- Simple Mounting
| Type | Encoder, Analog, Non-Contact |
| Full Scale | 30 - 360°, Continuous |
| Max Speed | Unlimited |
| Output | 0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA, Ratiometric, Quadrature TTL, SSI, SPI |
| Non-Linearity | ±0.50 % FS |
| Resolution | 0.02°, 0.1°, 0.70° |
