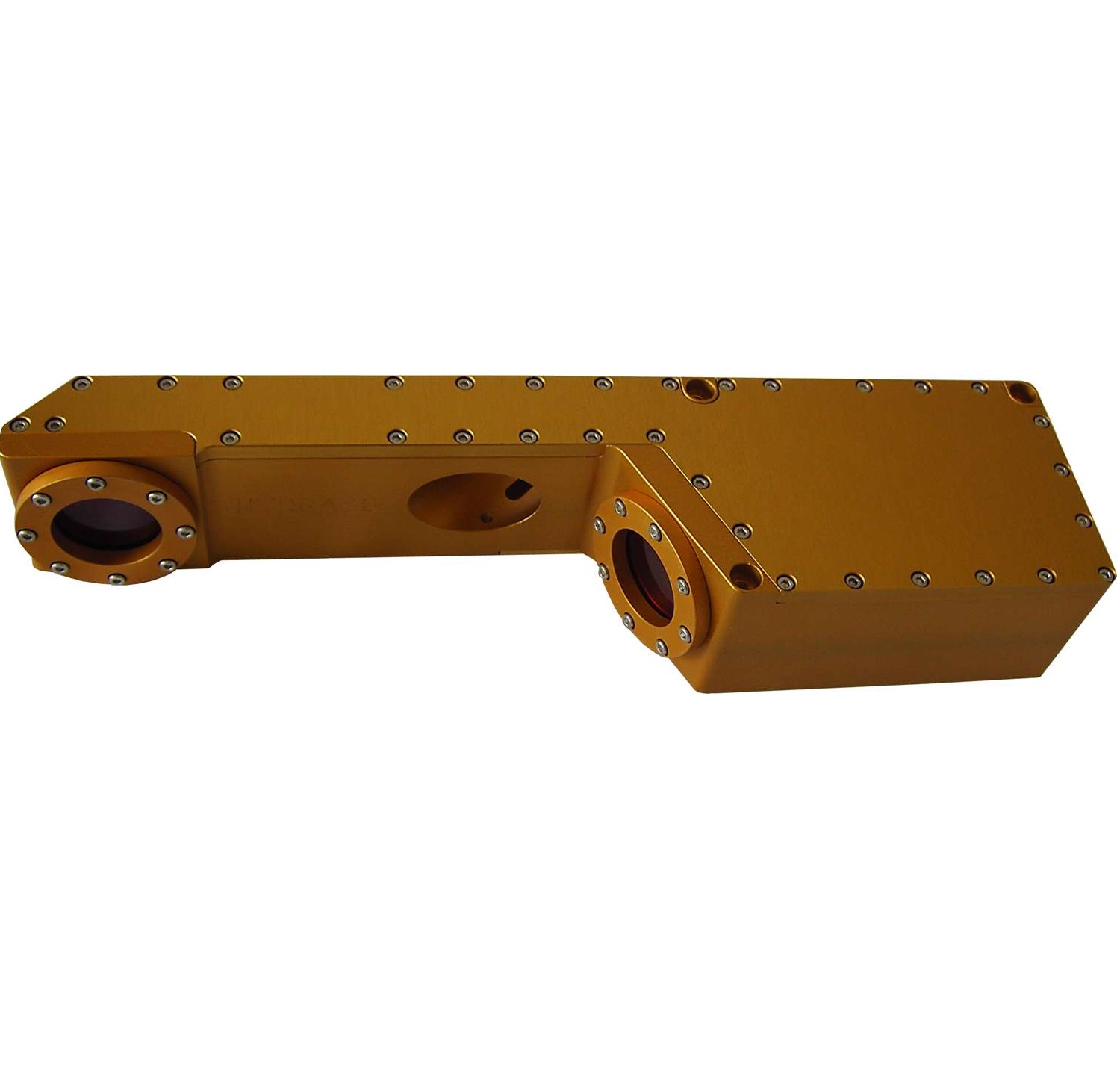

M2-iLUW, Laser Scanner
The M2-iLUW laser scanner is designed solely for underwater applications. Its integrated electronics and controller make it possible to use up to 40 m water depth.
Features:
- Underwater Laser Scanner
- Integrated Controller
- Rectangular Profile Housing
- Connection: 12-pin 12 pole Male Connector
- Sampling Rate: 100 Hz
- Laser Protection Class: 3R
- Surface: White to Black, Shiny, High Mirroring
Quote
Datasheet
Specifications
Downloads
Similar Products
M2-iLUW - Specifications
| Type | Laser |
| Full Scale | 80 mm |
| Near Gap | 50 mm |
| Output | Ethernet |
| Non-Linearity | ±0.20 % FS |
| Resolution | 0.080 mm |
| Excitation | 8 - 30 V DC |
| IP Rating | IP68 |
| Min Temperature | 0 °C |
| Max Temperature | 50 °C |
M2-iLUW - Downloads
M2-iLUW Datasheet |
M2-iLUW - Similar Products
- Laser Scanner
- Integrated Controller
- Rectangular Profile Housing
- Connection: 12-pin 4 pole Female Connector
- Sampling Rate: 100 Hz/170 Hz
- Laser Protection Class: 2M, 3R or 3B
- Surface: White to Black, Matte to Glossy
- Protective Window (Option)
| Type | Laser |
| Full Scale | 6 mm, 10 mm, 20 mm, 40 mm, 60 mm, 80 mm, 120 mm, 260 mm, 400 mm, 600 mm, 1000 mm |
| Near Gap | 38 mm, 50 mm, 53 mm, 55 mm, 63 mm, 65 mm, 84 mm, 150 mm, 325 mm, 500 mm, 650 mm, 845 mm |
| Output | Ethernet |
| Non-Linearity | ±0.20 % FS |
| Resolution | 0.003 mm |
- Laser Scanner
- Integrated Controller
- Rectangular Profile Housing
- Connection: 12-pin 4 pole Female Connector
- Sampling Rate: 380 Hz/680 Hz
- Laser Protection Class: 3R or 3B
- Surface: White to Black, Shiny, Mirroring
| Type | Laser |
| Full Scale | 80 mm, 220 mm |
| Near Gap | 75 mm, 140 mm |
| Output | Ethernet |
| Non-Linearity | ±0.20 % FS |
| Resolution | 0.045 mm, 0.11 mm |
