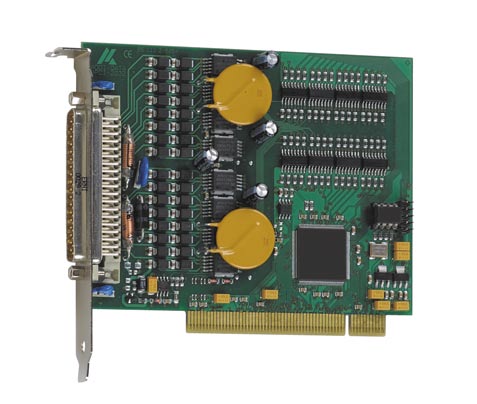

APCI-2032, Digital Output Board for PCI
The APCI-2032 output board features optical isolation, creeping distance, protection against fast transients, overvoltage, electrostatic discharge and high-frequency EMI.
Features:
- Digital Output Board for PCI
- 32 Digital Outputs, 24 V or 5 V, 500 mA/channel
- Optical Isolation 1000 V
- Output Filters, Short-circuit Protection
- Watchdog
- Outputs Reset to 0 at Power-On
Manufacturer: ADDI-DATA GmbH
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
APCI-2032 - Specifications
| Borad Type | PCI |
| Digital Outputs | 32 |
APCI-2032 - Models & Accessories
Models
| APCI-2032 | 32 Digital Outputs, 24V |
| APCI-2032-5 | 32 Digital Outputs, 5V |
APCI-2032 - Downloads
APCI-2032 Digital Output Board for PCI Datasheet |
APCI-2032 - Similar Products
- Digital I/O Board for PCI
- PCI 5 V (Model APCI-1564) or PCI 3.3 V (Model APCI-1564-3.3V)
- 32 Digital Inputs, 24 V, Including 16 Interruptible, Filtered
- 32 Digital Outputs, 24 V, 500 mA/channel, Filtered
- Optical Isolation 1000 V
- Watchdog, Timer, 3 x 32-bit Counters up to 500 kHz
- Separate Ground Lines for Inputs & Outputs
| Borad Type | PCI |
| Input Type | Digital |
| Digital Inputs | 32 |
| Digital Outputs | 32 |
- Digital I/O Board for PCI
- 32 Digital Inputs, 5 V, Including 16 Interruptible, Filtered
- 32 Digital Outputs, 5 V, 500 mA/channel, Filtered Open Collector or High-Side
- Optical Isolation 1000 V
- Watchdog, Timer, 3 x 32-bit Counters up to 500 kHz
- Outputs Reset to 0 at Power-On
| Borad Type | PCI |
| Input Type | Digital |
| Digital Inputs | 32 |
| Digital Outputs | 32 |
