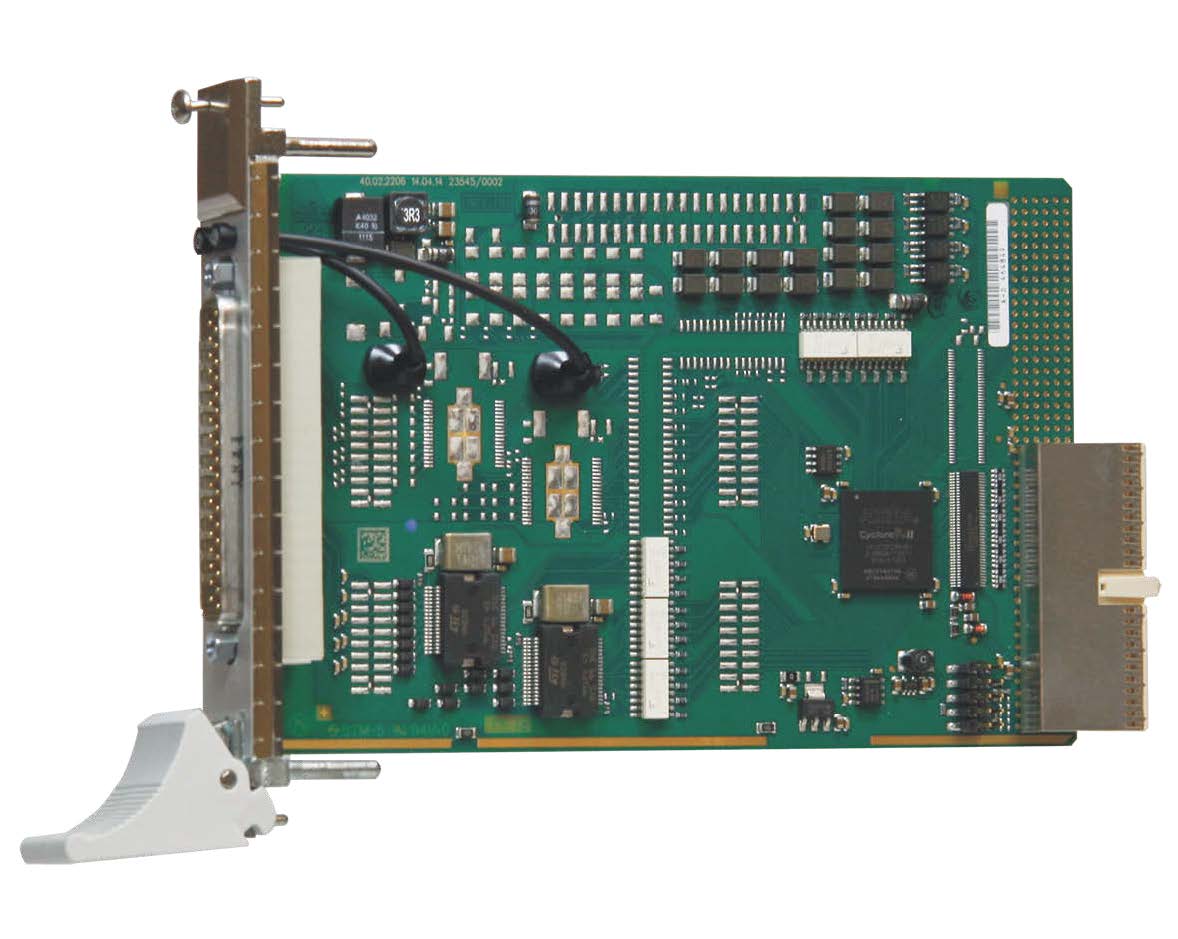

CPCI-1500, Digital I/O Board for Compact PCI
The CPCI-1500 board features optical isolation, creeping distance, protection against fast transients, overvoltage, electrostatic discharge and high-frequency EMI. The board also has separate ground lines for inputs and outputs.
Features:
- Digital I/O Board for Compact PCI
- 16 Digital Inputs, 24 V, Including 14 Interruptible
- 16 Digital Outputs, 24 V, 500 mA/channel
- Optical Isolation 1000 V
- Input & Output Filters
- Outputs Reset to 0 at Power-On
- MTBF: 85150 hours at 45°C
- Timer, Watchdog
Manufacturer: ADDI-DATA GmbH
Quote
Datasheet
Specifications
Downloads
Similar Products
CPCI-1500 - Specifications
| Borad Type | Compact PCI |
| Input Type | Digital |
| Digital Inputs | 16 |
| Digital Outputs | 16 |
CPCI-1500 - Downloads
CPCI 1500 Digital I/O Board for Compact PCI Datasheet |
