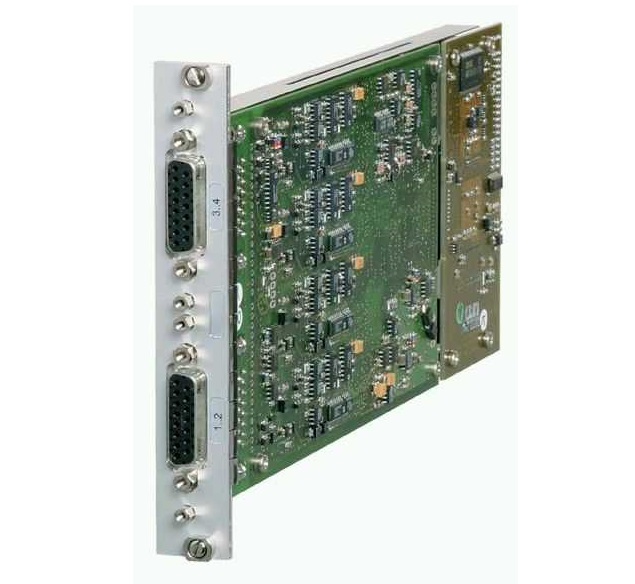

J1587-2, imc Fieldbus Interface - J1587-Bus
The J1587 fieldbus standard is particularly widespread in the American truck manufacturing industry as a diagnostics interface. The imc J1587 provides an electrically isolated J1587 node.
Features:
- imc J1587-bus, Fieldbus Interface
- Transfer Protocol: J1587
- Fully Supported by imc STUDIO Software
- RS485 Interface (option)
- Occupies 1 Fieldbus Slot
- Isolated
Manufacturer: imc Test & Measurement
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
J1587-2 - Specifications
| Family | imc CRONOScompact |
| imc CRONOS-SL | |
| Unit Type | Module |
| Field Interface | J1587 |
| Min Temperature | -10 °C |
| -40 °C | |
| Max Temperature | 55 °C |
| 85 °C |
J1587-2 - Models & Accessories
Models
| CRC/J1587-2 | For Portable CRONOScompact Housing, J1587-bus Interface, -10°C to 55°C |
| CRC/J1587-2-ET | For Portable CRONOScompact Housing, J1587-bus Interface, -40°C to 85°C |
| CRC/J1587-2-R | For Rack CRONOScompact Housing, J1587-bus Interface, -10°C to 55°C |
| CRC/J1587-2-R-ET | For Rack CRONOScompact Housing, J1587-bus Interface, -40°C to 85°C |
| CRSL/J1587-2 | For CRONOS-SL Housing, J1587-bus Interface, -40°C to 85°C |
J1587-2 - Downloads
Digital Fieldbus Datasheet Datasheet |
