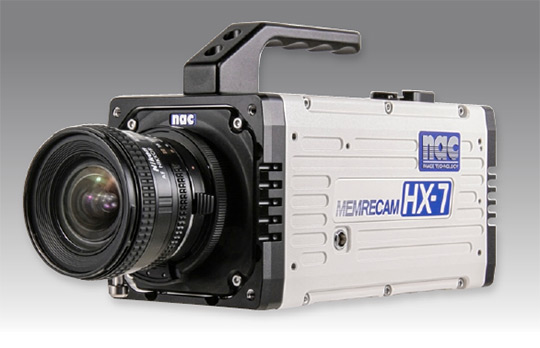

HX-7, High Speed Camera System
NAC’s compact, lightweight MEMRECAM HX-7 offers an astounding 5 Mega Pixel resolution at up to 800 fps, Full HD resolution at up to 2,000 fps, 1 Mega Pixel resolution at up to 3,600 fps, and so much more! The HX-7 gives the user the best...
Features:
- CMOS Sensor: 2560 X 1920 Active Pixels
- Bit Depth: Customer Selectable - 12/10/8 Bit
- Electronic Shutter: 10 msec to 1.1 usec
- Standalone operation, compact, lightweight camera
- Simultaneous record and download
- Enhanced data protection with fast download
- Versatile recording
- A-EST Mode: High resolution timing and sync system to less than 50 nanoseconds
- Simultaneously record to two distinct memory segments at two different imaging speeds
- Ruggedized for Range Use
Manufacturer: NAC Image Technology
Quote
Datasheet
Description
Specifications
Downloads
HX-7 - Description
NAC’s compact, lightweight MEMRECAM HX-7 offers an astounding 5 Mega Pixel resolution at up to 800 fps, Full HD resolution at up to 2,000 fps, 1 Mega Pixel resolution at up to 3,600 fps, and so much more! The HX-7 gives the user the best possible solutions: the highest resolutions available, the highest light sensitivity available, true mobility and stand-alone performance, and ultra fast imaging.
HX-7 - Specifications
| Max Resolution | 2560 X 1920 |
| Max Frame Rate | 200,000 fps |
| FPS (@ Max Res) | 800 |
| Output | Ethernet |
HX-7 - Downloads
HX-7 Datasheet Datasheet |
