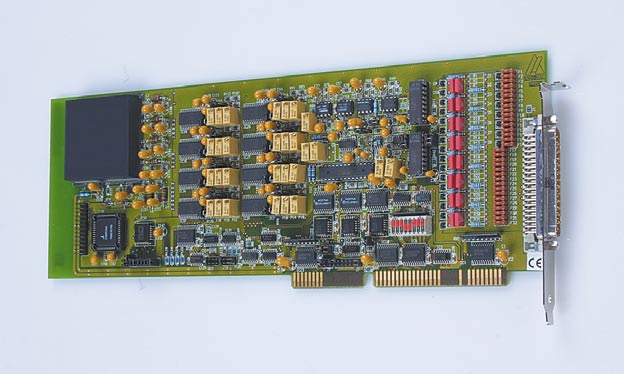

PA311-16-8, Multifunction Board for ISA
The PA311-16-8 multifunction board features noise neutralization of the PC voltage supply and is EMC tested.
Features:
- Multifunction Board for ISA
- 16 Single-Ended or 8 Differential Inputs
- 8 Analog Outputs
- 16-bit Resolution
- 100 kHz Data Transfer Rate
- DMA Access
- 24 TTL I/O, 3 Timers
- Software Trigger
Manufacturer: ADDI-DATA GmbH
Quote
Datasheet
Specifications
Downloads
Similar Products
PA311-16-8 - Specifications
| Borad Type | ISA |
| Input Type | Voltage |
| Current | |
| Analog Inputs | 16 |
| Analog Outputs | 8 |
PA311-16-8 - Downloads
PA311-16-8 Multifunction Board for ISA Datasheet |
