PMIS4/PMIR7/PMIR7N, Magnetic Incremental Rotary Displacment Encoder
The PMIS4 rotary sensor is designed for use with the PMIR7 and PMIR7N series of magnetic wheels to provide an incremental encoder that is suitable for harsh environments.
Features:
- PMIS4 Sensor Head & PMIR7/7N Magnetic Rings
- Digital Output
- Bi-Directional
- Zinc Die Cast Housing
- Elastomer Bonded Hard Ferrite Magnetic Scale
- Inner Diameter: 20 mm, 27 mm, 35 mm, 50 mm
- Connection: Up to 20m Integral Cable
- Highest EMC Protection
- Large Guiding Distance ± 1 mm
Manufacturer: ASM Sensors, Gmbh
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
PMIS4/PMIR7/PMIR7N - Specifications
| Type | Encoder |
| Non-Contact | |
| Full Scale | Continuous |
| Max Speed | 6000 RPM |
| Output | Quadrature TTL |
| Quadrature HTL | |
| Resolution | 0.1° |
| Excitation | 5 V DC |
| 10 - 30 V DC | |
| IP Rating | IP67 |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
PMIS4/PMIR7/PMIR7N - Models & Accessories
Models
| PMIS4-HTL | HTL Interface |
| PMIS4-TTL | TTL Interface |
| PMIR7-20-50-M-27 | 50 poles, Inner Diameter 27 mm |
| PMIR7-20-64-M-35 | 64 Poles, Inner Diameter 35 mm |
| PMIR7-20-90-M-50 | 90 Poles, Inner Diameter 50 mm |
| PMIR7N-20-50-M-20 | 50 Poles, Inner Diameter 20 mm |
| PMIR7N-20-64-M-20 | 64 Poles, Inner Diameter 20 mm |
| PMIR7N-20-90-M-20 | 90 Poles, Inner Diameter 20 mm |
PMIS4/PMIR7/PMIR7N - Downloads
PMIS4, PMIR7, PMIR7N Incremental Magnetic Encoder Datasheet |
PMIS4/PMIR7/PMIR7N - Similar Products
- Incremental Angle Encoder
- RS422 or HTL Output
- Bi-Directional
- Aluminum Housing
- Aluminum Shaft
- 10 mm Shaft or 6 mm Hollow Shaft
- Connection: 2m Integral Cable or 8-pin M12 Socket
- Long Lifetime
| Type | Encoder, Non-Contact |
| Full Scale | Continuous |
| Max Speed | 10000 RPM |
| Output | Quadrature TTL, Quadrature HTL |
| Resolution | 0.36°, 1.40° |
| Excitation | 5 V DC, 10 - 36 V DC, 18 - 36 V DC |
- Seawater Proof Incremental Angle Sensor
- RS422 or HTL Output
- Stainless Steel Housing
- Stainless Steel Shaft
- 10 mm Shaft or 6 mm Hollow Shaft
- Connection: 8-pin M12 Socket
- Protection Class IP68 (Option)
| Type | Encoder, Non-Contact |
| Full Scale | Continuous |
| Max Speed | 10000 RPM |
| Output | Quadrature TTL, Quadrature HTL |
| Resolution | 0.36°, 1.40° |
| Excitation | 5 V DC, 10 - 36 V DC, 18 - 36 V DC |
- Contactless Transmissive Rotary Sensor
- Analog, SSI, SPI or Incremental Output
- Temperature Resistant Plastic Housing
- Connection: Integral Cable or M12 Connector
- Other Connections Available
- Unlimited Mechanical Lifetime
- Redundant Analog Output (Option)
- Simple Mounting
| Type | Encoder, Analog, Non-Contact |
| Full Scale | 30 - 360°, Continuous |
| Max Speed | Unlimited |
| Output | 0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA, Ratiometric, Quadrature TTL, SSI, SPI |
| Non-Linearity | ±0.50 % FS |
| Resolution | 0.02°, 0.1°, 0.70° |
- Contactless Rotary Sensor
- Analog, SSI, SPI or Incremental Output
- Temperature-Resistant Plastic Housing
- Stainless Steel Shaft
- Multiple Shaft Designs Available
- Connection: Integral Cable or M12 Connector
- Long Lifetime
- Redundant Output (Option)
| Type | Encoder, Analog, Non-Contact |
| Full Scale | 30 - 360°, Continuous |
| Max Speed | 120 RPM, 800 RPM |
| Output | 0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA, Ratiometric, Quadrature TTL, SSI, SPI |
| Non-Linearity | ±0.50 % FS |
| Resolution | 0.02°, 0.1° |

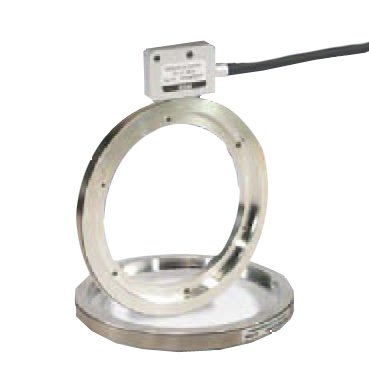

- PMIS4 Sensor Head & PMIR5 Magnetic Wheel
